Vector to Gcode 2

Vector to G-code: Revolutionize Your Creative Process!

Welcome to the new and improved Vector to G-code! This powerful tool converts your vector designs into G-code with ease, packed with exciting features to enhance your creative workflow.

SVG Files Panel

Adding SVG files is a breeze. Click the '+' button, choose your file, and voilà, your SVG is loaded. Remove files with a right-click and "delete." Load multiple SVGs by dragging them into the panel and rearrange their order for precise drawing sequences.

Illustrator Integration

For Illustrator users, install our script from the Help menu to bridge Illustrator with Vector to G-code. Launch Vector to G-code directly from Illustrator to display your drawing in the viewer.

Interval Panel

Insert custom commands or SVG files at set intervals. Perfect for tasks like picking up paint regularly, this feature allows G-code commands and interval SVGs to run simultaneously, enhancing project versatility.

Variable Line Width

Adjust the Z-axis based on line widths in your SVG. Set maximum and minimum Z values to control stroke thickness, ideal for brushwork with varying line thicknesses.

Application Settings

Customize your interface and optimize machine performance:

• Viewer Colors: Change the color of your path, travels, and intervals.
• Background and Grid Colors: Modify the viewer background and grid colors.
• Machine Size: Set dimensions reflecting your machine's size.
• Grid Units: Choose your preferred units.

Start/End Commands

Insert custom commands at the start and end of your G-code sequence for automatic machine operations. Supports multiple commands for detailed control.

Global On/Off Command

Configure primary movement settings, including Feed Rate, Seek Rate, and Invert Z Axis. Set "On Commands" and "Off Commands" for different machine types.

Custom Commands

Override global settings for each SVG file. Tailor tasks for individual SVGs, such as activating different motors or adjusting laser power settings.

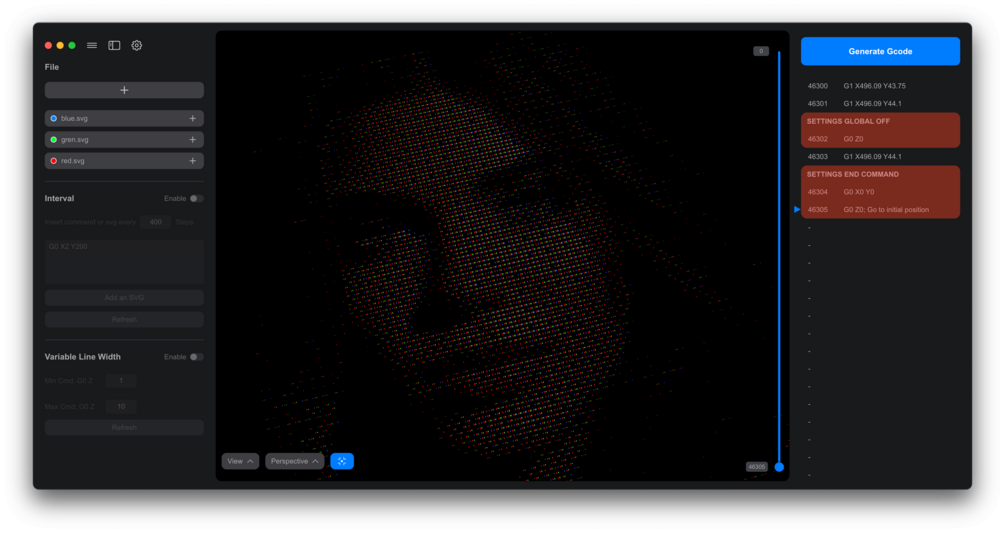

G-code Panel

Track and manage your G-code with visual cues:

• Orange Section: Code from your settings.
• Dark Blue Section: Custom SVG-specific code.
• Green Block: Interval-related code.
• Light Blue: Custom commands.

Unleash Your Creativity

Vector to G-code fosters creativity and simplifies powerful functionalities. We are excited to see your innovative applications and support your creative journey.

Download Vector to G-code today on Gumroad and transform your vector designs into reality!
